ARKHAM SMP

MISSION-CRITICAL PROCESSING FOR AC-130J & MC-130J PLATFORMS

Learn more
Close-up of a computer motherboard with an AMD Ryzen processor labeled 'AMD Ryzen' and other electronic components.

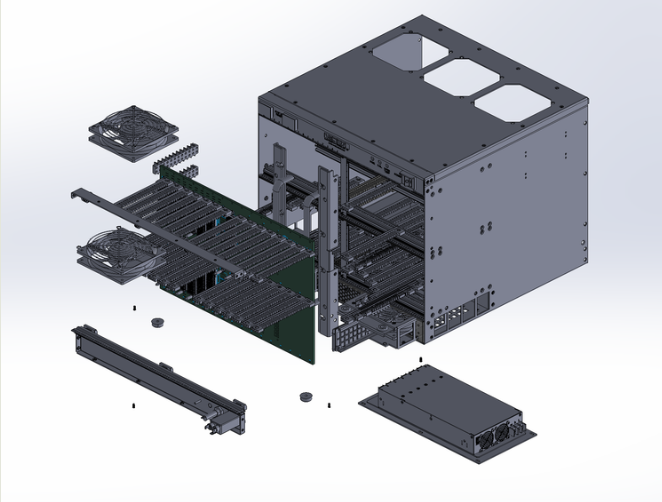

An exploded view of a computer server case with various internal components including cooling fans, power supply unit, and circuit boards.

BUILT FOR FUTURE SPECIAL MISSION REQUIREMENTS

The Arkham SMP serves as the critical interface between the C-130J proprietary avionics systems and special mission applications on the AC-130J and MC-130J. It enables high-speed data capture, pass through, and display integration with advanced video processing.

Designed for long-term growth, the Arkham SMP supports open systems architecture, modular upgrades, and future mission capabilities.

Built to perform in the most demanding mission environments, the Arkham SMP delivers unmatched reliability, flexibility, and performance.

Features listed for a video streaming service or platform: 16 independent video streams, 1080p video distribution, 40GB ethernet support, SOSA compliant architecture.
The image shows the cockpit of an airplane with multiple control panels, screens, and various instruments.

ADVANCED VIDEO PROCESSING

Supports up to 16 independent 1080P video streams with overlay, PIP, and composite video capabilities

The image shows a close-up view of electronic circuit boards with various components, wires, and connectors.

HIGH-SPEED NETWORKING

1GbE, 10GbE and 40GbE connectivity ensures high bandwidth performance across mission systems

Digital network with glowing data points and lines radiating from a central point

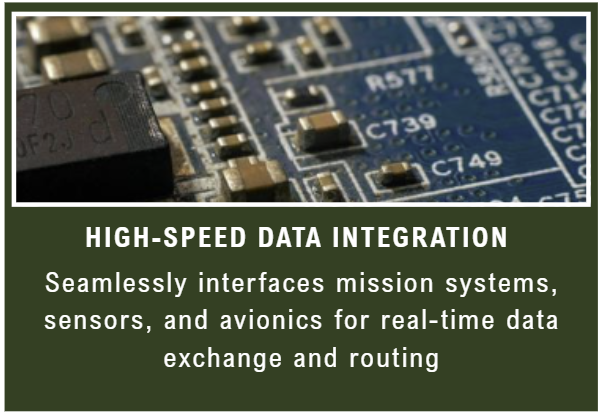

HIGH-SPEED DATA INTEGRATION

Seamlessly interfaces mission systems, sensors, and avionics for real-time data exchange and routing

Close-up of a mechanical part or machine component, partially visible with metallic surfaces and bolts.

OPEN SYSTEMS ARCHITECTURE

SOSA-Aligned design enables technology insertion, upgrades, and long-term growth with reduced life cycle costs

Close-up of a digital display with various data points and graphics on a technological device

SAFETY-CRITICAL PROCESSING

Built with reliable processing architecture to support mission-critical applications and compliance

Aircraft cockpit interior with multiple control panels and displays from the pilot's perspective.

PUSH-TO-GLASS CAPABILITY

Delivers mission data and video directly to existing aircraft displays anwhere in the aircraft

    • RS-170

    • ARINC-818

    • SMPTE

    • CVBS

    • DVI

    • 28Vdc and Open/Ground discrete

    • MIL-STD-1553B

    • 1GbE, 10GbE, 40GbE Ethernet

    • RS-232 Serial

    • RS-422 Serial

    • RS-429 Serial

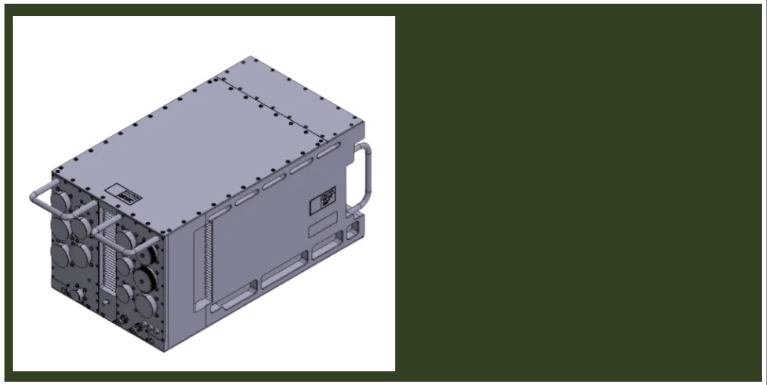

The Arkham SMP is a third-generation, SOSA-compliant mission processor designed to support the evolving needs of the U.S. Air Force and U.S. Government. As a critical component of the C-130J special mission architecture, it provides a cost-effective, scalable platform for integrating advanced mission applications, data processing, and video distribution capabilities.

Designed for long-term growth and technology insertion, the Arkham SMP enables future mission expansion while reducing lifecycle costs. Although originally developed for the C-130J, its open architecture and flexible design make it well-suited for a wide range of fixed-wing and rotary-wing aircraft applications supporting both U.S. and international customers.
